Gaming MiniLaptop GPD WIN3 Intel i7 1195G7 5.5Inch Handheld GamePad Tablet 16GB 1TB WIN10 Pocket Mini Laptop Game Player Console

From R21781.71
  • Color:

  • Plugs Type:

200 in stock

Categories:
  • Description

    Number Of Game FPS Measured

    Optional smart base

    Support cradle charger. The back is also provided with a docking station, a large number of rich interface. Charging, surfing the Internet, and external display. complete in one step.Interface description:

    • 3 USB 3.2 Gen2 Type-a Ports, All At 10Gbps;

    • 1 USB 3.2 Gen2 Type-c Interface, 10Gbps;

    • 1 HDMI 2.0b Interface, Bandwidth Up To 18Gbps, Supports Up To 32 Channels, 48bit Maximum Color Depth, And Supports HDR;

    • 1 RJ45 Network Port, 10/100/1000Mbps Self-adaptive Network CardThe Base + Machine Is Placed Flat On The Desktop As A Host

    With An External Monitor And Handle For Playing Games

    When You Go Out For Traveling, On The Way To Work, Evening Break And Other Spare Time.

    Hold With Both Hands, Play Games Anytime, Anywhere.
    Base + Machine Flat On The Desktop
    Operate With The External Mouse, Keyboard, And Monitor





    5.5-inch Sunlight Screen, 268 PPI
    WIN 3 Uses A 5.5-inch Sunny Screen, NTSC: 84% (typ), Resolution 1280×720, 400nit, 268ppi, And Adopts Corning’s Fifth-generation Gorilla Glass, DC Dimming, So There Is No Need To Worry About The Graininess Of The Screen

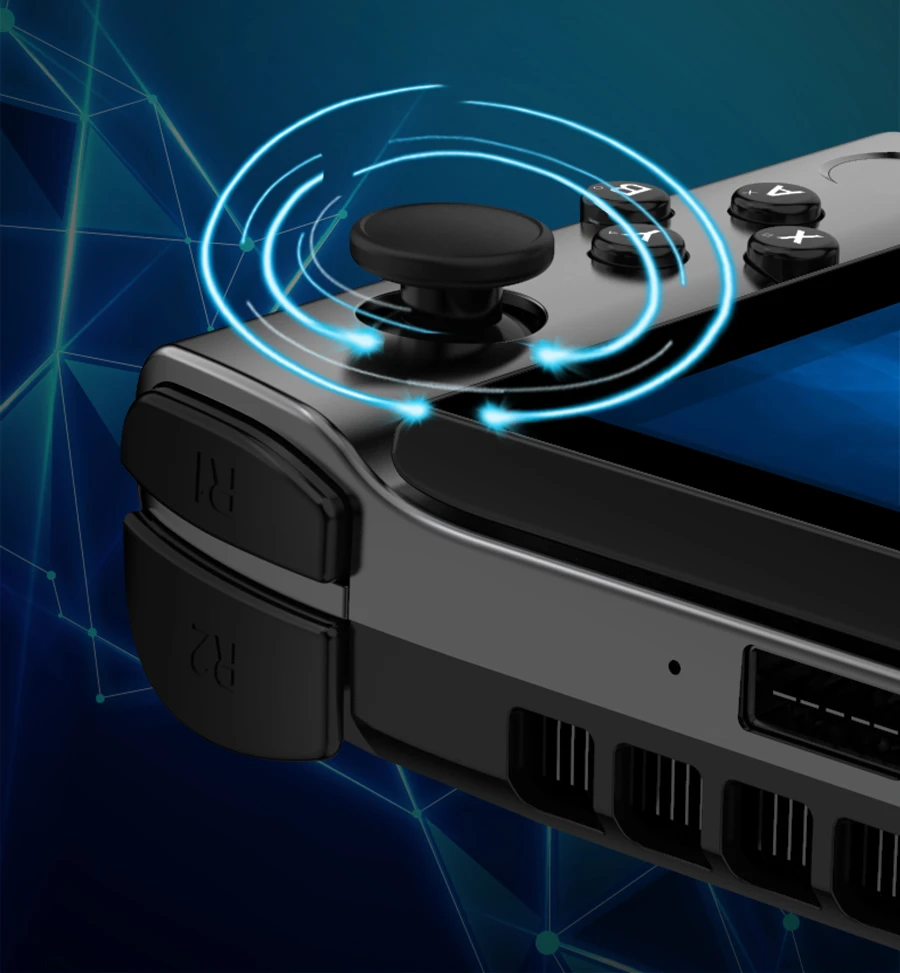

    WIN 3’s Protruding Alps Original Dual 3D Big Rocker Has Large Stroke

    WIN 3’s Protruding Alps Original Dual 3D Big Rocker Has Large Stroke, Large Swing Distance, Low Resistance, Which Sacrifices A Little Reaction Speed, But Improves Accuracy. As The Player Is In A Fighting Game, Its Control Comfort Is Comparable To Those Of Japan’s Top Joysticks Seimitsu And Sanwa, And It Natively Supports Down-pressing To Achieve L3 / R3 Functions.

    Linear Analog Trigger Button


    If You Are An Advanced Player And Experience The Racing Game With WIN 3, Its Smoothness Will Be Qualitatively Changed. The Racing Will Gradually Accelerate, And The Shooting Will Be Full Of Seconds, Just Like Doing With A Real Throttle And Gun Trigger!


    WIN 3 Is Also Equipped With Dual Vibration Motors

    Starting A Car Engine, Shooting A Laser Gun, Controlling A Helicopter, Etc., All Have An Unparalleled Sense Of Reality. When Shooting, You Can Feel The Recoil Of The Gun Pushing You Back, And Starting The Engine Can Make Your Body Tremble, Like An Overcharge, Which Brings A Tingling Sensation, Just Like Sitting In A Rumbling Car.

    Double Amplitude Enhancement, Super Lively Sound

    WIN 3 Adopts The AAC Top Stereo Super Linear Speaker From Germany. The Sound Cavity Is Built With Bass Materials And Adopts A 0.9cc Large Sound Cavity Design. The Double Coil Drives The Diaphragm And Balances The Force Of The Diaphragm And Doubles The Amplitude. Therefore, The Sound Is Super Lively And Loud!

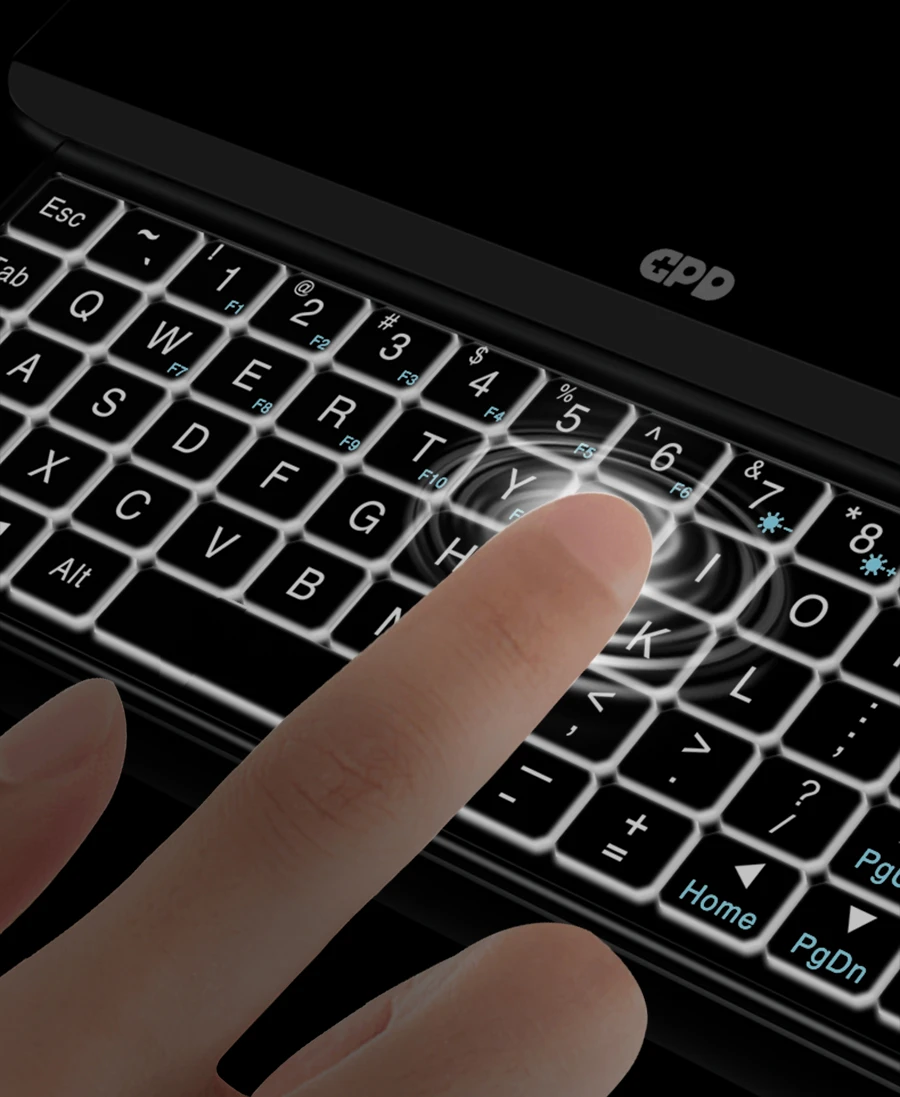

    White Backlit Touch Keyboard

    The Touch Keyboard Of WIN 3 Is Hidden At The Bottom Of The Screen And Adopts The QWERTY Full Keyboard Layout, And Add The Function Of Vibration Motors. When The Screen Is Slid Open, The White Backlight Is On, And There Is A Vibration Prompt When The Finger Touches.


    2 Custom Buttons On The Back

    When Playing Games, The Cover Is Usually Not Slid Open Because The Keyboard Is Not Used. However, Sometimes, When You Need To Press The Esc Key To Return To The Game Settings Interface, It Is Troublesome To Slide Each Time. To This End, We Added 2 Customizable Physical Keys On The Back Of WIN 3, So That Players Only Need To Use The “key Position Modification Software” Developed By GPD And Built Into The System To Define A Key On The Keyboard.


    Fingerprint Unlock, Avoid Entering The Password Every Time


    When A Player Leaves Temporarily And The Screen Is Locked, The Cover Needs Sliding Open To Enter The Password Every Time, Which Is Very Troublesome. So, We Added A Fingerprint Unit To Unlock In The Lower Right Corner Of The Handheld Game Console. Unlock The System With One Press!

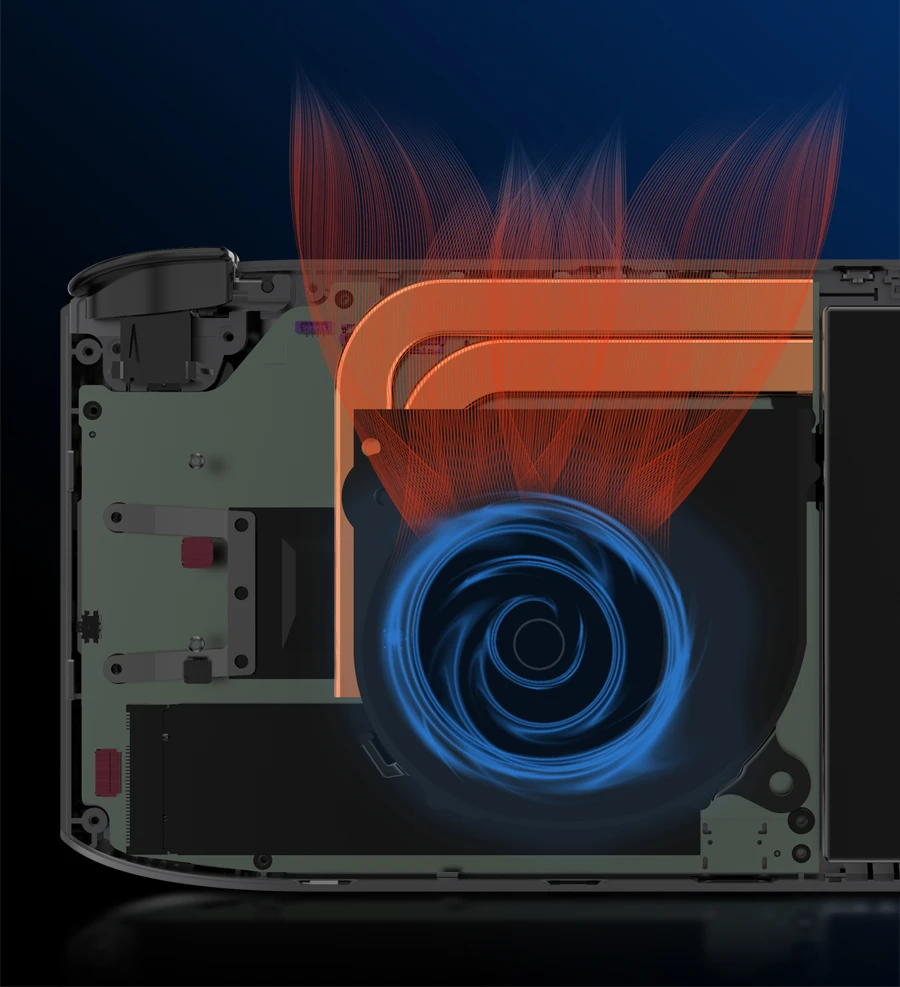

    Large Turbofan For PC + Dual Heat Pipes

    When The Internal Temperature Is Lower Than 40℃, The Fan Only Turns On At 20%. When The Internal Temperature Is Higher Than 40℃, The Fan Accelerates With 2% Pwm Increments Each Time, Up To 100%.


    Intel Gen11 Tiger Lake-U Series Processors

    Tiger Lake-U In WIN 3 Has A Performance Increase Of 20% Compared To Ice Lake-U Of The Previous Generation, Has A Core Graphics Card Of Doubled Performance, And Has 5 Times The Ai Computing Power Of The Previous Generation.


    Intel Gen12 Iris Xe Graphics Card


    WIN 3 Integrates The 12th Generation Intel Iris Xe Graphics Core Graphics Card, With 96 Computing Units, 8 Cores Per Unit, And A Total Of 768 Cores; Its Base Frequency Is 400MHz, The Maximum Dynamic Frequency Is Increased To 1300MHhz, And It Integrates 1MB L2 Cache. The Overall Performance Of The 96EUs 1165G7 Surpasses The Nvidia Geforce MX350, And The 80EUs 1135G7 Also Surpasses The Nvidia Geforce MX350 At 28W.

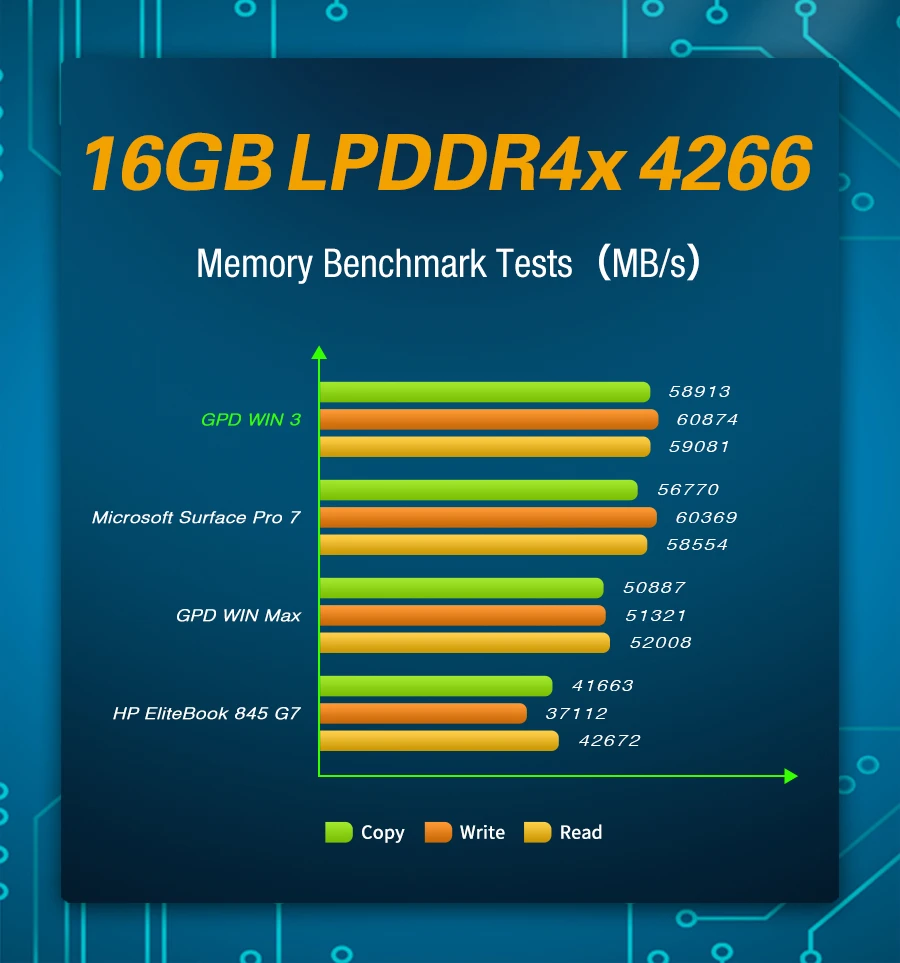

    16GB LPDDR4x 4266 Memory

    At Present, LPDDR4x 4266 Can Only Rely On The Intel 11th Generation Tiger Lake-U Processor To Play The 86GB/s Memory Bandwidth!


    1TB M.2 NVMe 2280 SSD’s

    The Fourth-generation PCIe Bus Technology

    1TB M.2 NVMe 2280 SSD’s

    The Chart Shows The Read And Write Speed Of PCIe 4 SSD. The Standard Configuration Of The Shipped Machine Is PCIe 3 SSD. If You Need To Reach The Speed Of The SSD In The Chart, Please Purchase PCIe 4 SSD And Replace It By Yourself.

    Only Single-sided Device Layout Are Supported

    External eGFX, Frame Rate Increased By 300%, Comparing To Thunderbolt 3, FPS Improves 40%

    The Transfer Rate Of Thunderbolt 4 Is Still 40Gbps, But The PCIe 4.0 Bandwidth Is Doubled, And The Maximum Transfer Rate Supported By Each Connected Device Is Increased To 32Gbps (4GB/s). The Bus DMI 3.0×4 Doubles To DMI 3.0×8, Which Can Provide A Total Bandwidth Of About 7.86 GB/s. In This Way, When Playing Games With Thunderbolt 4 External eGFX (Graphics Card Docking Station), The Performance Of The External Graphics Card Will Be Fully Utilized Because The Bus Bandwidth Is Doubled.

    Charging And Outputting Video Signals Are Synchronized
    Through The Thunderbolt 4 Interface, While Outputting High-definition Video Signals To Any Monitor, The Monitor Can Charge WIN 3 In Reverse!

    Can Link Two External 4K/60Hz Monitor
    Through Thunderbolt 4 Interface, WIN 3 Supports The Connection Of 2 4K Monitors Or 1 8K Monitor Output.

    5GB/s Speed, Transferring The Files Instantly
    It Is Convenient For Professional Photographers To Transfer Super Large m2ts Files

    The PD 2.0/3.0 Charger Meets The Fast Charging Protocol And More Than 15V/20V Voltage Can Be Used


    Any PD 2.0/3.0 Protocol Power Adapter With Charging Voltage Up To 15V/20V On The Market Can Charge WIN 3. The Maximum Can Come To 100W.


    Battery Campacity versus battery life

    • Screen: 5.5 Inches, Touch Panel

    • CPU: Intel Gen11 Tiger Lake-U i7-1195G7

    • GPU: Intel Gen12 Iris Xe Graphics

    • Memory: 16GB LPDDR4x 4266

    • Hard Disk: 1TB M.2 SSD Pcie Gen3

    • Thermal Design: Active Cooling, Big Fan + Dual Heat Pipe

    • TDP: 15-20W, 20-25W, 25-28W

    • Network Communications: Wi-Fi, Bluetooth

    • 1×USB 4(Full Speed)

    • 1×USB 3.2 Gen 2 Type-C (Provided By The Base)

    • 4×USB 3.2 Gen 2 Type-A (3 At The Base)

    • 1×microSDXC Slot

    • 1×HDMI 2.0b (IProvided By The Base)

    • 1×RJ45 (Provided By The Base)

    • Battery Capacity: 45.62Wh, 11.55V==3950mAh×3 Series

    • Appearance: 198×92×27mm

    • Net Weight: 550g
