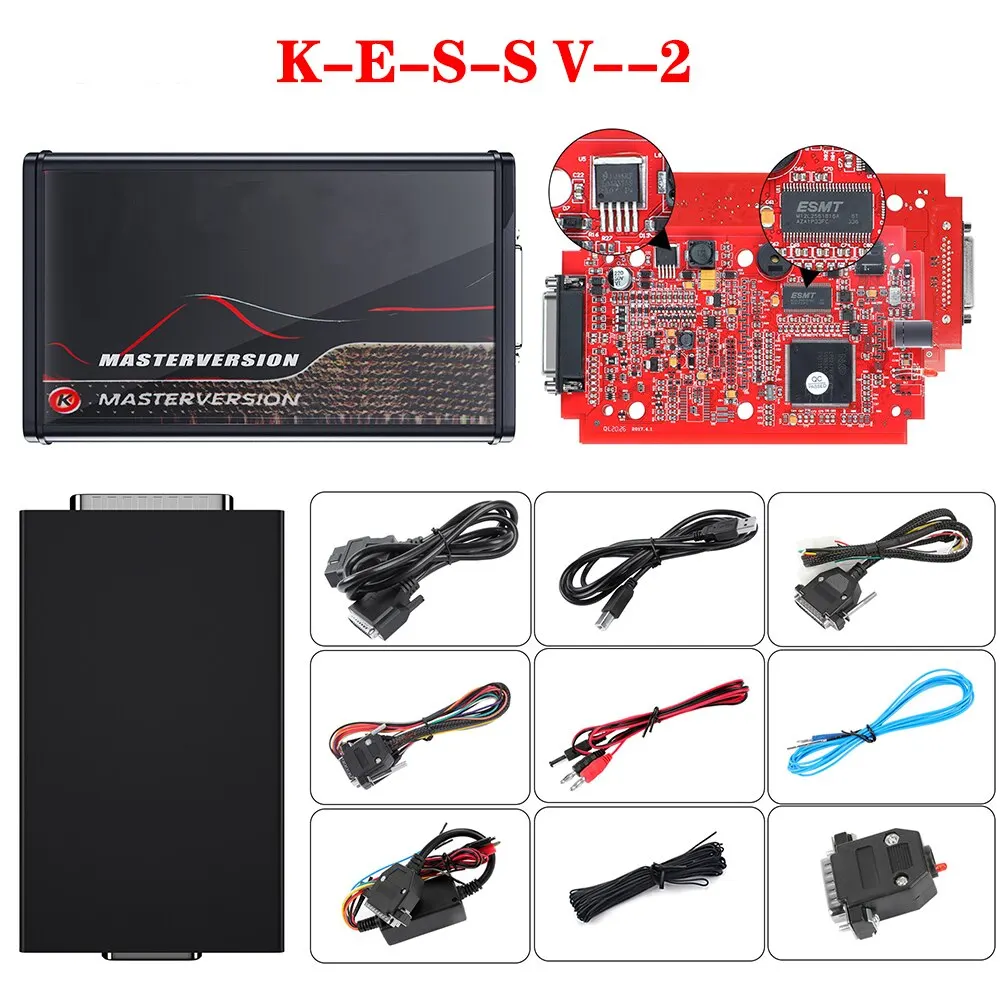

Unlimited 2.80 EU Red K-TAG V7.020 4 LED 2.25 SW Online KESS V2 V5.017 KTAG 7.020 Master KESS 5.017 OBD2 Tuning ECU Programmer

From R1300.48
  • Ships From:

  • Color:

10 in stock

  • Description

    For KESS Ktag V7.020 KESS V2.53 V2 V5.017 SW V2.25 v2.47 2.53 4 LED BDM Frame 22pcs Adapters K-TAG 2.25 ECU Programmer

    Pls note : Now for KESS is V2.53  ,V2.53 add newer year for some cars . if u get v2.47 want v2.53 just contact with us we send u email or send u link thanks

    For now we give unewestunlocked and activatedKSUITE V2.47 , that means you can install v2.47 directly ,do not need us to activate, this unlocked version ismore convinient, can install unlocked v2.47 on all pc !

    V2.47 add much more car models and ecu protocols than V2.23 Ksuite, even can support some vehicles untill 2017 !

    V2.47 is no token limited , V2.47 is online version with internet available !

    V2.47 Fixed checksum bugs !

    V2.47 can work with EU RED / Green KESS V2 V5.017

    No matter which Kess U make order we will give u Both software CD V2.47 and Cd V2.23 together ,

    V2.47 and V2.23 can be installed in same PC

    Also Good news  now KTAG IS newest version V2.25 can contact with us get link for

    If Cd have problem , pls also do not worry , we wil give u link download software ,

    Note :we will  send u 15  ECU Tuning software as free gifts though email , when u get it can leave email for us , we will send u very fast

    ECM Titanium V1.61 /. WinOLS V2.24/. ECU maps/ECU Pinouts collection/KM Tools/. Immo Universal 3.2/IMMO Universal Decoding 3.2/. Setup_DPF_EGR_Lambda_Remover_v2017_05/DTC Remover public-archivedwl-317/. ecu safe 2.00/. IMMODecoding GUIDE ENG/. IMMO Universal 3.2 KeyGen32/. Keygen3.2-3.5/ DPF 2017 Install

    1.. the left upper corner and the lower right corner notch size is not the same

    2.More than  buzzer

    3.WFs = Infineon, BCR112 NPN Digital Transistor

    4.27E = ON Semiconductor NUP2105LT1G

    5.6DW = NXP BC817,215 NPN Bipolar Transistor

    6.A6c =MMUN2113LT1G / MMUN2113LT3G

    7.K5B = BC807-25-7-F PNP Bipolar Transistor

    8.Using imported Japanese Murata filter NFE61PT472C1H9L

    1.Newest Hardware:V7.020Software Version:V2.22/2.23

    2.No Tokens Limitation, Noreset button need

    3  .KTAG 7.020 can be used online

    4.Master VersionECU Programming Tool

    5.  Require System:XP/WIN7/WIN8/WIN10

    6.Languages:Italian Deutsch English French Portuguese Spanish

    7.  Support BDM Function Well, No Checksum Error

    8.  Support bothCar & Truck ECU Programming

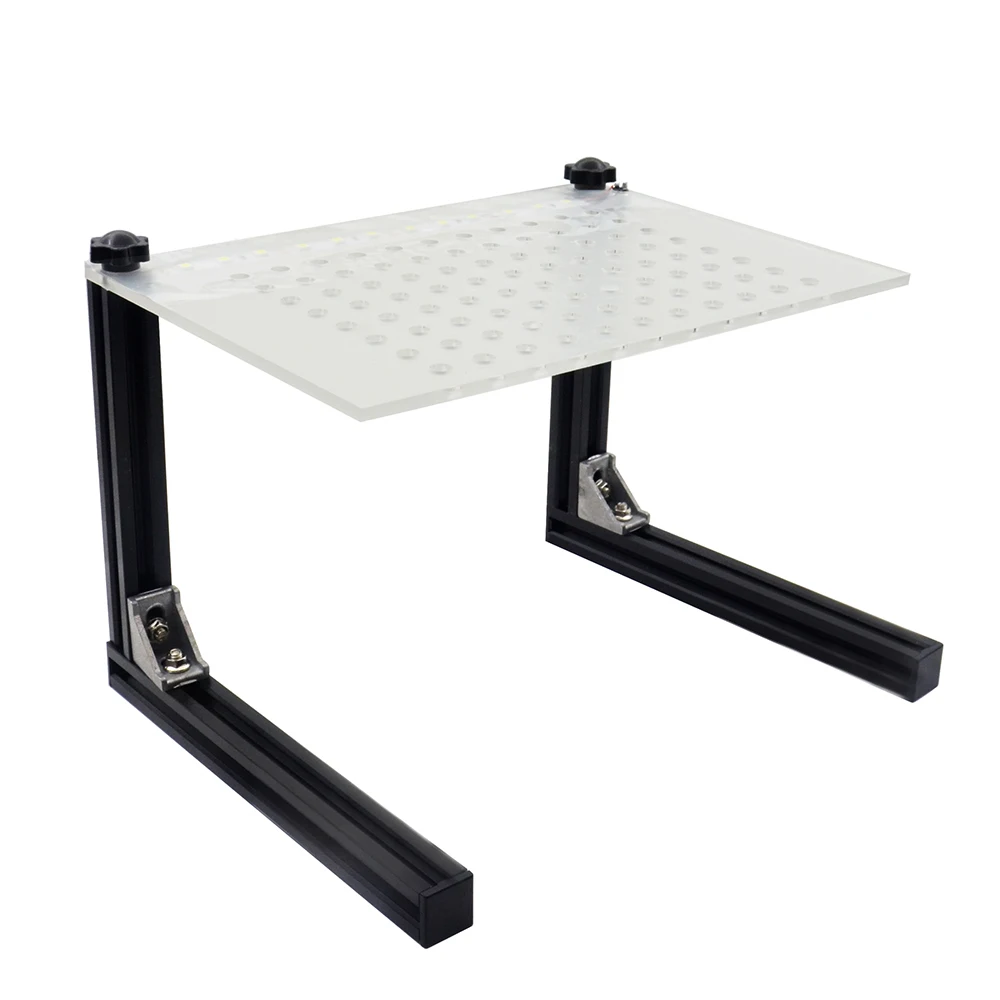

    This LED BDM FRAME is best bracket For ECU Update /  ECU Brush And Write / ECM Modified and programming / Probe holder / Dimsport aids. It is much better than the old bdm frame.
    It is best used for KTM100,FGTECH/BDM100/CMD/DIMSPORT ect… ECU Chip Tuning Tools.
    Easy installation and operation,no hurt the ECU circuit board.
    For Car rush,modify,programming bracket stand.
    Fits for ECU brush&write,ecu modified&programming.
    Probe holder,dimsport assistant.
    Aluminum alloy stand
    Arcylic board,mesh assistant
    No PCB Adapters inside package!!! LED works for 12V. Once you connect with probe,then you disconnect 12V battery for LED,it will works.The probe pin is adjustable.
    Package including:
    1 x Alumiunm BMD Frame New LED
    1 x Mess Arcylic Board(With LED&Connector)
    4 x Probe Pens
    4 x Connection Cable
    22 pcs adapters
    Adapter width: ~60mm width for original BDM Probe, not for low quality plastic with 40mm width.
    Adapter thickness: 2mm
    Adapter colour: Green
    Package includes:
    1 14AM00T01M for Bosch
    2 14AM00T02M for Dlphi DCM
    3 14AM00T03M for  Bootloader ST10xx
    4 14P600KT04 for Infineon Tricore EDC/MED17
    5 14AM00T05M for Marelli MPC55xx JTAG
    6 14AM00T06M for Dlphi MPC55xx JTAG
    7 14AM00T07M for Denso CN1 Boot
    8 14AM00T08M for Denso CN2 Boot
    9 14AM00T09M for Denso CN3 Boot
    10 14AM00T10M for Denso CN1 AUD
    11 14AM00T11M for Denso CN2 AUD
    12 14AM00T00M for Dlphi DCI
    13 14AM00TBAS for Base Adapter 1.27
    14 14AM00T14M for NexusEFI T6 Lotus
    15 14AM00TB02 for Magneti Marelli BDM insert
    16 14AM00TB01 for Siemens BDM insert
    17 14AM00TB03 EDC7 BDM insert
    18 14AM00T18M for Magneti Marelli MPC/SPC56xx
    19 14AM00T13M for Nexus MPC5xx TRW ECU
    20 VAG 1.6tdi – for Siemens-Continental PCR2.1
    21 14AM00T15M for Toyota NEC76F-20
    22 14AM00T16M for Toyota NEC76F-26
